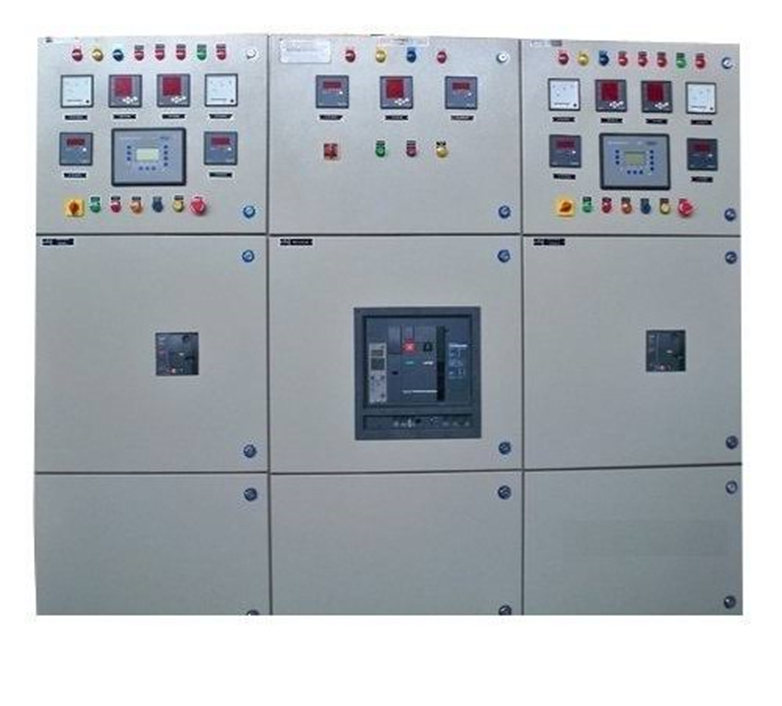

DG Synchronization Panels are based on Auto/Manual sharing, Auto Synchronising, Auto KW & KVAR sharing and Load dependent start stop features. Changing of scheme are made through PLC & software which work in tandem with the Generator Control Package Relay that also takes care of power monitoring, communication , display as well as protection. For any type of load addition or reduction, manual intervention with respect to DG set operation is not required. However, in case of emergency, manual override is possible. Special programs using Real Time Clock (RTC) are possible. With this facility, along with KW dependent programs; day, date and time dependent programmers are possible. Because of KW dependent load sharing, optimum utilization of DG sets are possible. This increases DG sets efficiency and saves lot of fuel. DG Sets are always run with about 80% load factor, where we get maximum efficiency of DG Sets.
| Application | Industry, Buildings, OEM |
| Operational Voltage | 415 VAC |
| Degree of Protection | Upto IP55 Outdoor duty / IP65 |
| Current Ratings | Upto 2000A 50kA Al. / Cu. Busbar |
| Compatible Relays | DEIF, CUMMINS, WOODWARD |
| Configuration | Fixed Type |
| Interlocking Options | PLC Interlocking / Hard Wire Interlocking |
| Logics implementation | Auto Load Sharing , AMF Functions, Star time optimization. |
| Communication features | Modbus RTU/ASCII, IEC 61850 and SCADA Compatible |
| Busbar Type | Alu / Cu |
| Protections | Finger Proof / Arc guard protected |
| Flexible Switchgears | ABB / Schneider / L&T / Siemens / Hager |
| Form of Separation | 2b / 3b / 4b |
| Form of Separation | Interleaved Type |
| Environment | Suitable for Outdoor / Indoor Installation up to ambient temperature of 50 deg. C |
