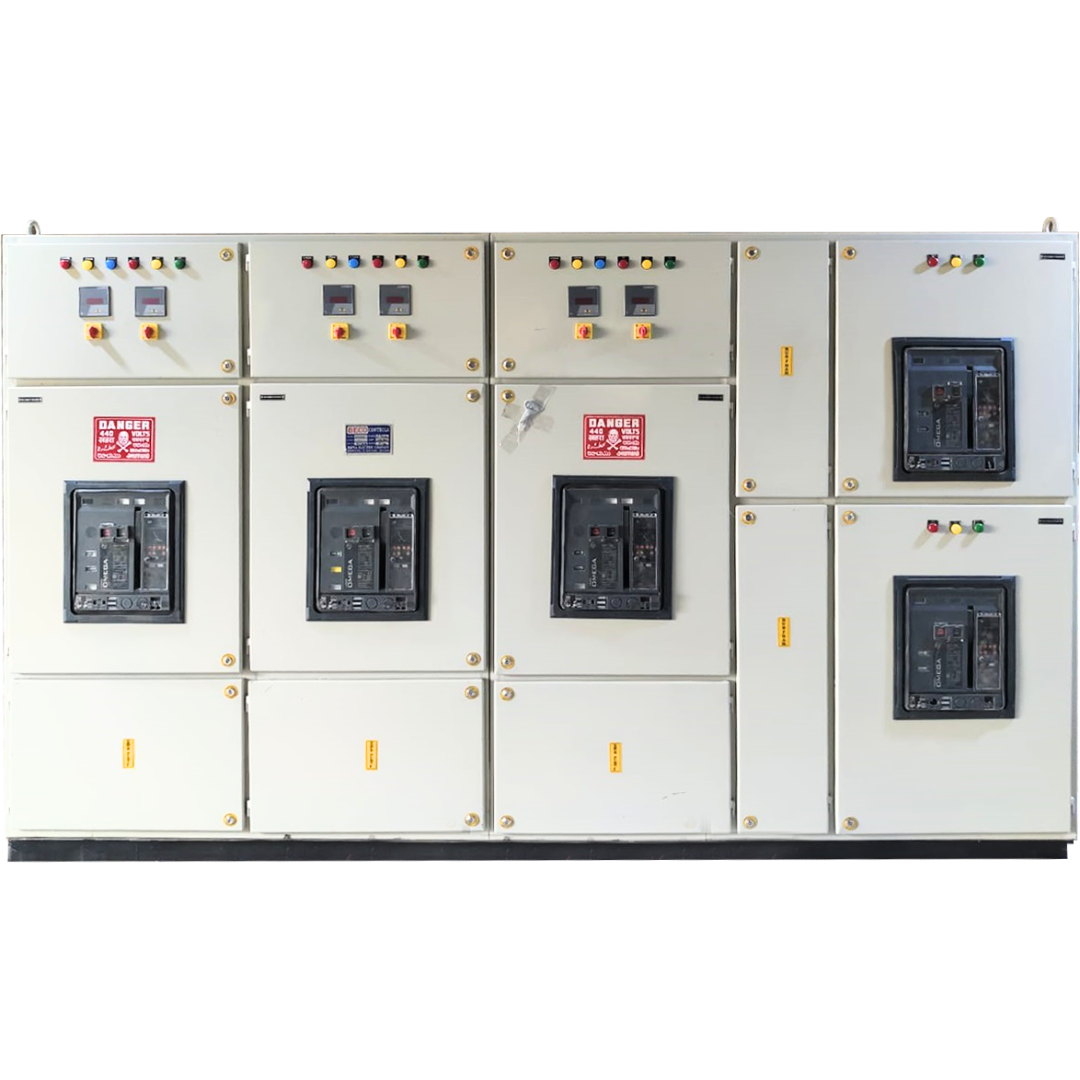

PCC panels designed and manufactured according to the customer specifications with rated current ranging from 63A to 2000A. Best quality switchgear and busbar are used for reliable and efficient performance. These panels are manufactured in a perfectly compartmentalised structure. Premium quality insulators are used to ensure safety. There can be a provision of space heater, thermostat and backup protection if required by customer.
FEATURES
- Compliant with latest PTTA IEC-60439 & CPRI
- Customizable design
- Low losses: unique bus bar design
- Dust and vermin proof
- Human safety: finger touch proof panel
| Application | Industry, Buildings, OEM |
| Operational Voltage | 415 VAC |
| Degree of Protection | Upto IP55 Outdoor duty / IP65 |
| Current Ratings | Upto 2000A 75kA Al. / 100kA Cu. Busbar |
| Configuration | Fixed Type |
| Communication features | Modbus RTU/ASCII, IEC 61850 and SCADA Compatible |
| Busbar Type | Alu / Cu |
| Protections | Finger Proof |
| Flexible Switchgears | ABB / Schneider / L&T / Siemens / Havells/ C&S |
| Form of Separation | 2b / 3b / 4b |
| Busbar Arrangement | Interleaved Type |
| Environment | Suitable for Outdoor / Indoor Installation up to ambient temperature of 50 deg. C |
